Mobile Refuelling Trailer
Designed for quick underwing and overwing operations via reel hoses, in a wide range of types for every customer need.
- Tank capacity
- 2,000-10,000 L
- Underwing (transfer unit)
- up to 1,200 L/min
Technical drawing
Where the main equipment sits on the mobile refuelling trailer, on one fuel line.
01 / 07Standard fit
Differential pressure gauge
Monitors pressure drop across the filter element.
Specification
Each unit is configured per order to the customer’s operation.
| ACapacity | |
|---|---|
| Tank capacity | 2,000 / 5,000 / 10,000 L + transfer unit |
| BFlow rates | |
| Overwing (trailer units) | 80-150 L/min |
| Underwing (transfer unit) | up to 1,200 L/min |
| CCompliance | |
| Built to |
|
| DPer order | |
| Running gear and dimensions | Confirmed in the quotation |
| Component makes and models | Confirmed in the quotation |
Unit range
4 configurations, each fitted to its task.
01 / 04
Trailer unit, 2,000 L
overwing max. 80-100 L/min
- Aluminium tank with manhole and flame arrestor
- Spring rewind reel drive
- Ex-proof electric motor
- Mechanical meter system
- Stainless steel piping
- Deadman control system
- Differential pressure gauge
- ATEX ex-proof equipment
02 / 04

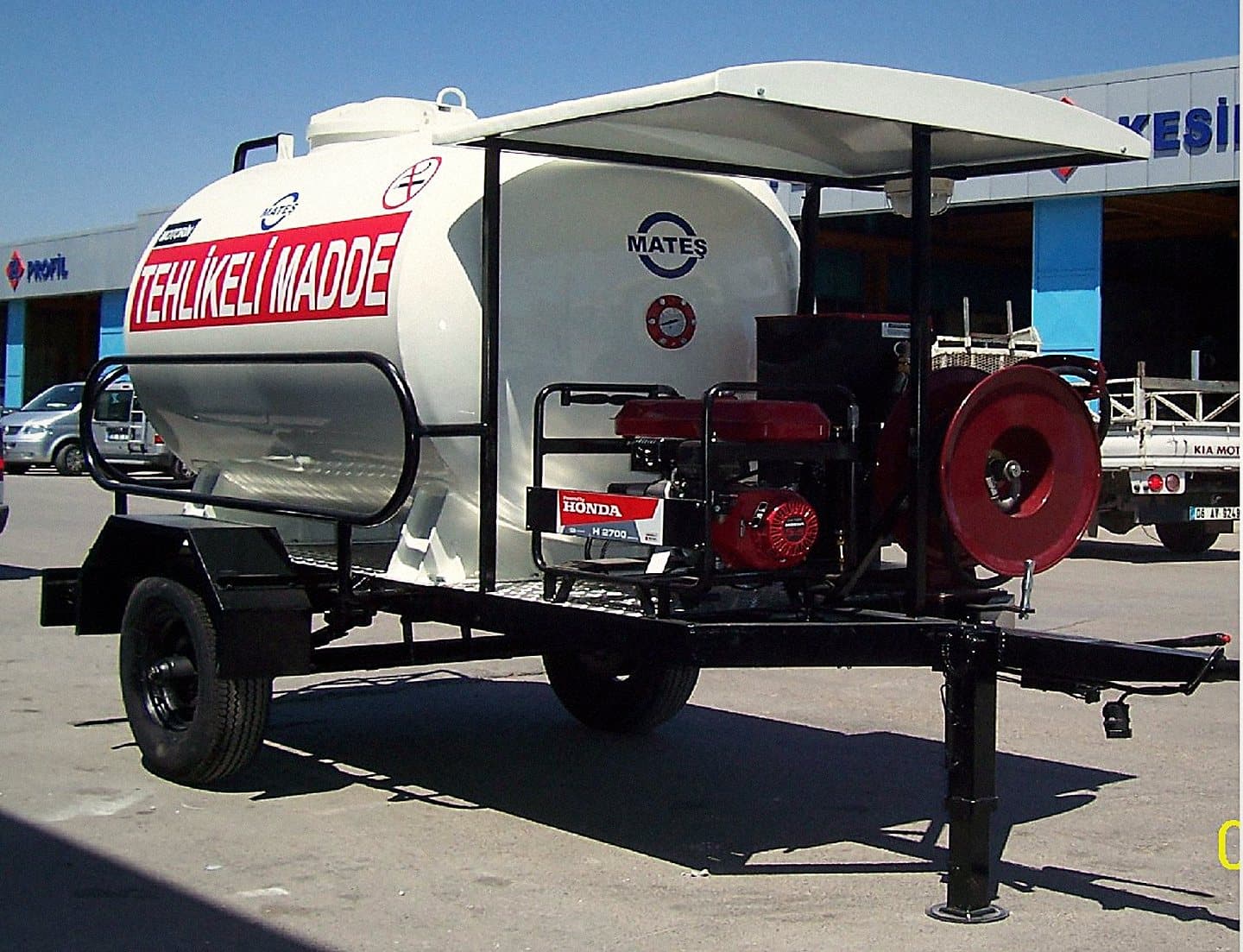

Trailer unit, 5,000 L
overwing max. 100-150 L/min
- Aluminium tank
- Spring rewind reel drive
- Mechanical meter system
- Stainless steel piping
- Diesel-powered generator
03 / 04
Trailer unit, 10,000 L
overwing max. 80 L/min
- Aluminium alloy tank with manhole
- Spring rewind reel drive
- Ex-proof electric motor
- Mechanical meter system
- Stainless steel piping
- Tank level gauge
04 / 04
Mobile Fuel Transfer Unit
underwing max. 1,200 L/min
- Underwing refuelling via reel hose
- Electric hose reel drive
- Mechanical meter system
- Closed-circuit sampling system with recovery tank
- Stainless steel piping
- Deadman control system
- Filter water separator
- ATEX ex-proof equipment
Photographs
Select one to enlarge.
06 photographs
