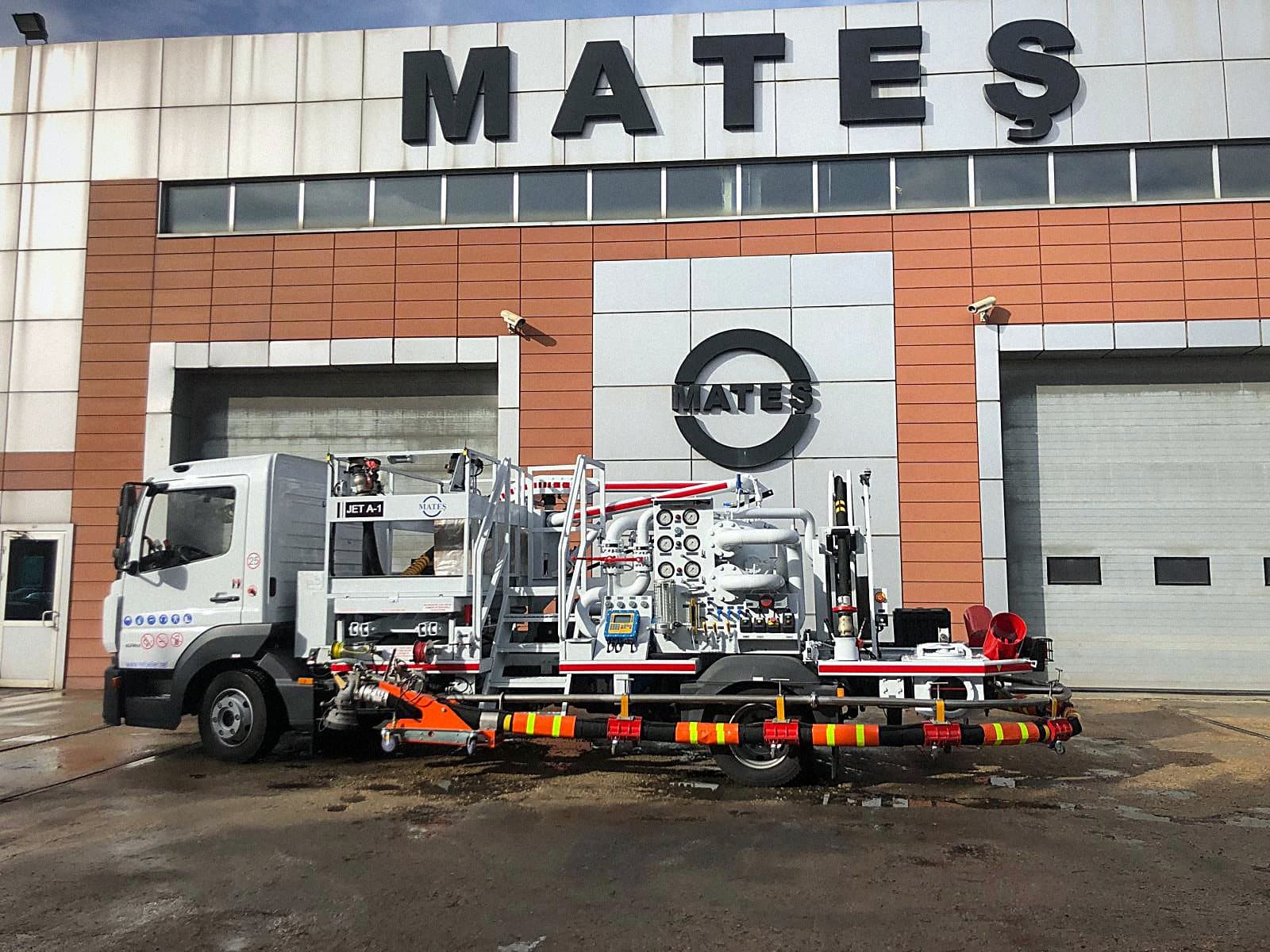

Hydrant Dispenser
With additional safety features, MATEŞ Hydrant Dispensers fuel a wide range of aircraft directly from the hydrant system.
- Supply
- Tankless, fed from the hydrant line
- Via deck hoses
- up to 4,000 L/min
Technical drawing
Where the main equipment sits on the hydrant dispenser, on one fuel line.
01 / 07Standard fit
Elevating platform up to 4.6 m, scissor type, hydraulic drive
Specification
Each unit is configured per order to the customer’s operation.
| ASupply | |
|---|---|
| Supply | Tankless, fed from the hydrant line |
| BFlow rates | |
| Via underwing reel hose | up to 1,200 L/min |
| Via deck hoses | up to 4,000 L/min |
| CCompliance | |
| Built to |
|
| DPer order | |
| Chassis make and model | Confirmed in the quotation |
| Dimensions and weights | Confirmed in the quotation |
| Component makes and models | Confirmed in the quotation |
Equipment
Standard fit on every unit, with options configured per order.
Standard
12- 01Elevating platform up to 4.6 m, scissor type, hydraulic drive
- 02Wing-wand interlocks
- 03Underwing refuelling via reel hose and deck hose
- 04Hydraulic hose reel drive system
- 05Electronic meter system
- 06Closed-circuit sampling system
- 07Drive-away interlock system
- 08Deadman control system
- 09Hydrant pressure control system
- 10Hydraulic stabilizers
- 11Hydrant coupler hydraulic lift system
- 12Maintenance-free balanced pantograph
Options
01- 01Stainless steel / aluminium flow system piping
Available as options, configured per order.
Photographs
Photographs and stills from the MATEŞ film. Select one to enlarge.
11 photographs
