Stationary Tank Unit

Fuelling kits designed to serve as your fixed fuelling station.

MATEŞ stationary tank unit

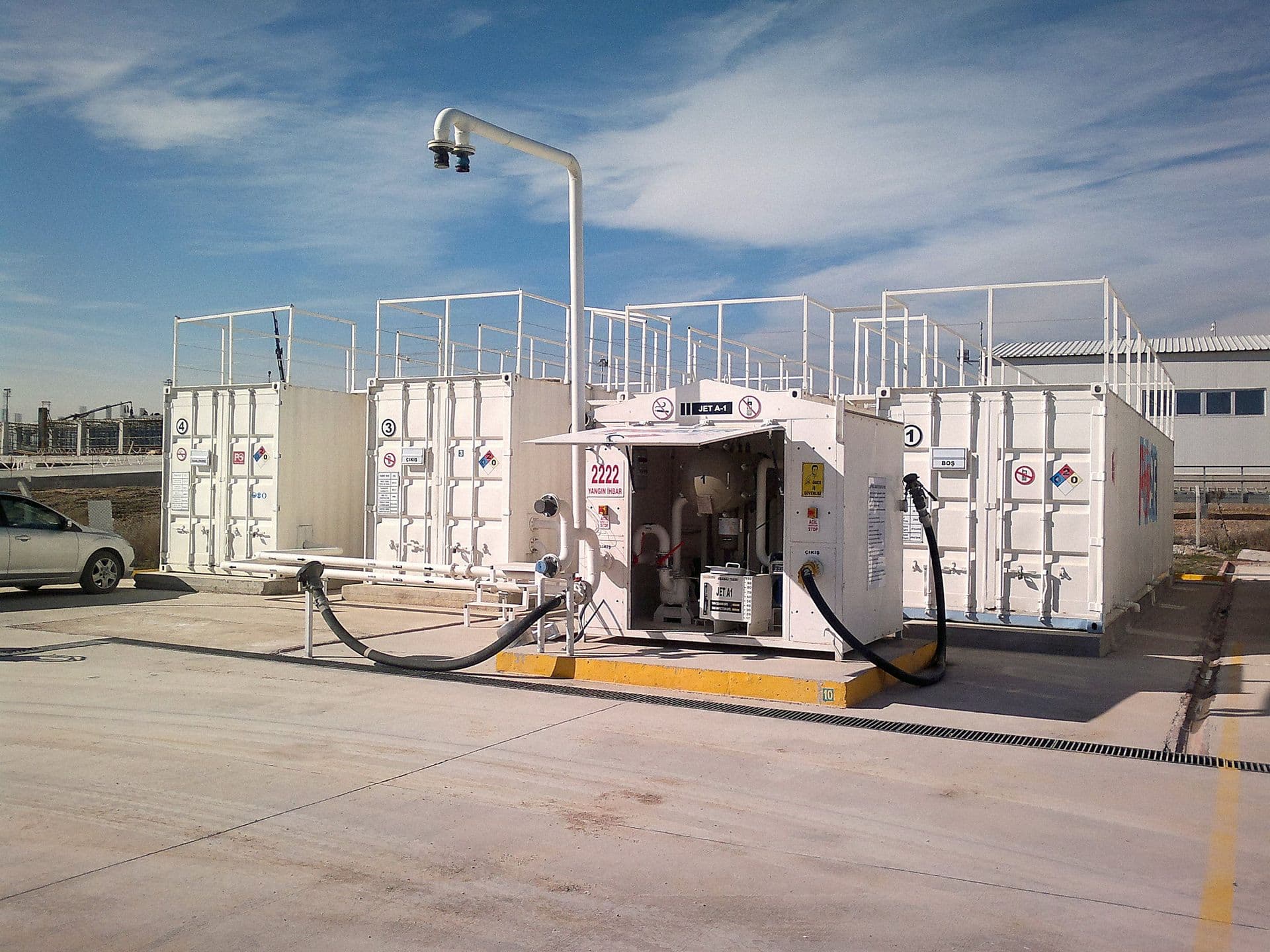

MATEŞ stationary tank unitFig. 1
Tank capacity
10,000-45,000 L
Overwing reel hose
up to 350 L/min
Request a quoteDownload datasheet (PDF)1016 KB

Technical drawing

Where the main equipment sits on the stationary tank unit, on one fuel line.

10,000-45,000 LMechanical meter system (electronic optional)Overwing refuellingStainless steel / aluminium flow system pipingBottom loadingSelf-priming centrifugal pumpEx-proof electrical motor
Schematic side view, not to scale. Select a numbered point.

01 / 06Standard fit

Stainless steel / aluminium flow system piping

Specification

Each unit is configured per order to the customer’s operation.

Request a quoteDownload datasheet (PDF)1016 KB
MATEŞ Stationary Tank Unit specification
ACapacity
Tank capacity10,000-45,000 L
BFlow rates
Overwing reel hoseup to 350 L/min
CCompliance
Built to
  • NFPA 407
  • IATA/JIG
  • EN 12312-5
DPer order
Footprint and dimensionsConfirmed in the quotation
Component makes and modelsConfirmed in the quotation

Equipment

Standard fit on every unit, with options configured per order.

Standard

06
  • 01Overwing refuelling
  • 02Bottom loading
  • 03Self-priming centrifugal pump
  • 04Ex-proof electrical motor
  • 05Mechanical meter system (electronic optional)
  • 06Stainless steel / aluminium flow system piping

Options

04
  • 01Mechanical drive hose reel
  • 02Closed-circuit sampling system with recovery tank
  • 03Defuelling
  • 04Deadman control

Available as options, configured per order.
