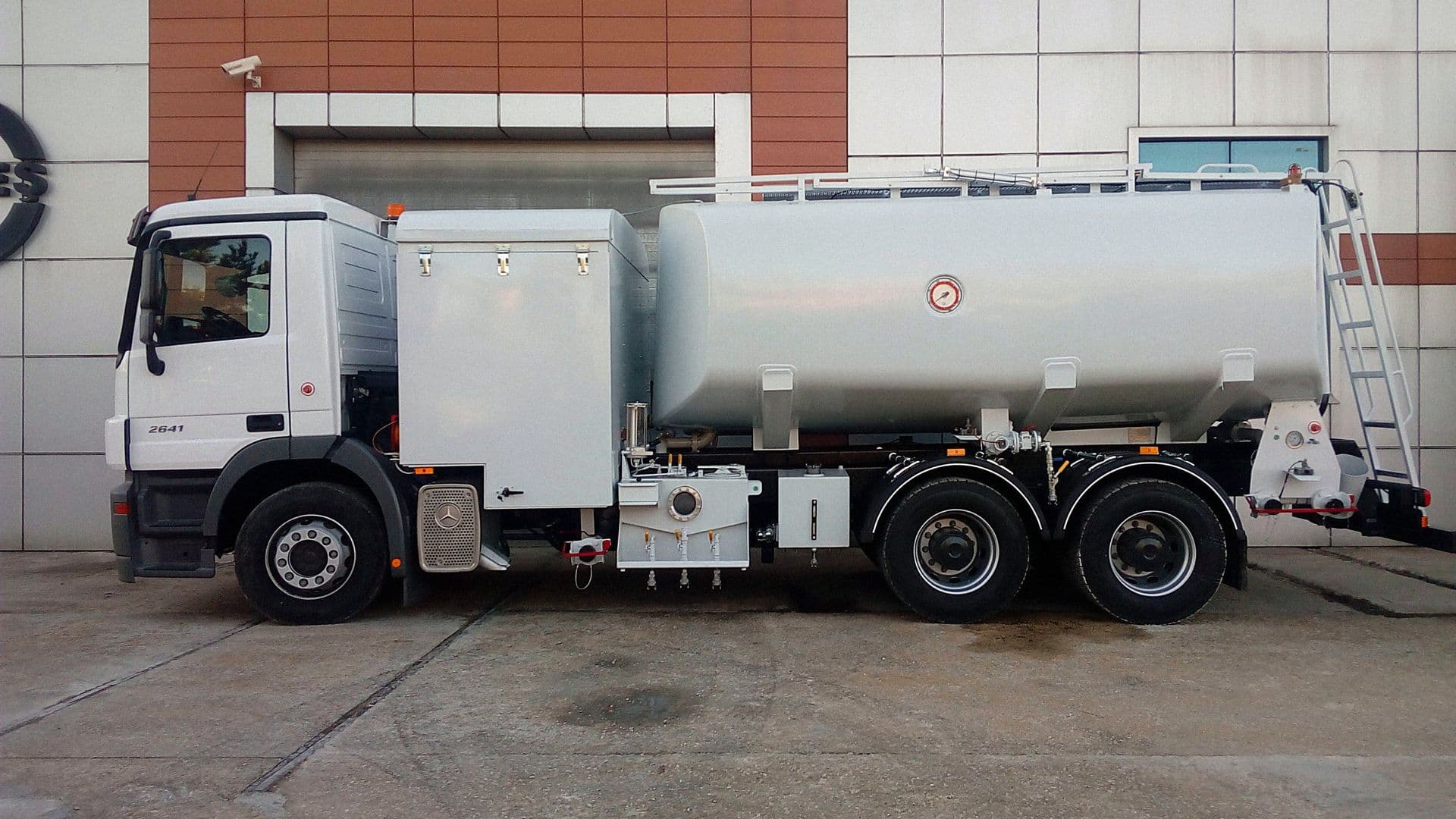

Rigid Refueller
Designed for all types of aircraft refuelling, with tailor-made solutions and designs for each customer's particular needs.
- Tank capacity
- 5,000-20,000 L
- Underwing
- up to 1,200 L/min
Technical drawing
Where the main equipment sits on the rigid refueller, on one fuel line.
01 / 08Standard fit
Deadman control system
Operator-held control, releasing it stops the flow.
Specification
Each unit is configured per order to the customer’s operation.
| ACapacity | |
|---|---|
| Tank capacity | 5,000 / 12,000 / 18,000 / 20,000 L |
| BFlow rates | |
| Underwing | up to 1,200 L/min |
| Deck hose, platform (option) | up to 3,500 L/min |
| Overwing | up to 400 L/min |
| CCompliance | |
| Built to |
|
| DPer order | |
| Chassis make and model | Confirmed in the quotation |
| Dimensions and weights | Confirmed in the quotation |
| Component makes and models | Confirmed in the quotation |
Equipment
Standard fit on every unit, with options configured per order.
Standard
09- 01Aluminium alloy / stainless steel single-compartment tank
- 02Hydraulic hose reel drive
- 03Mechanical / hydraulic combined system pump drive
- 04Electronic or mechanical meter system
- 05Stainless steel / aluminium piping for fuel system
- 06Drive-away interlock system
- 07Deadman control system
- 08Superstructure automation
- 09IPCV (Inline Pressure Control Valve) system
Options
08- 01Overwing refuelling via reel hose(s)
- 02Underwing refuelling via reel hose(s)
- 03Platform refuelling via deck hose(s)
- 04Defuelling
- 05External suction
- 06Close-circuit sampling system
- 07Start-stop system
- 08Bottom loading (dual side)
Available as options, configured per order.
Photographs
Photographs and stills from the MATEŞ film. Select one to enlarge.
15 photographs
